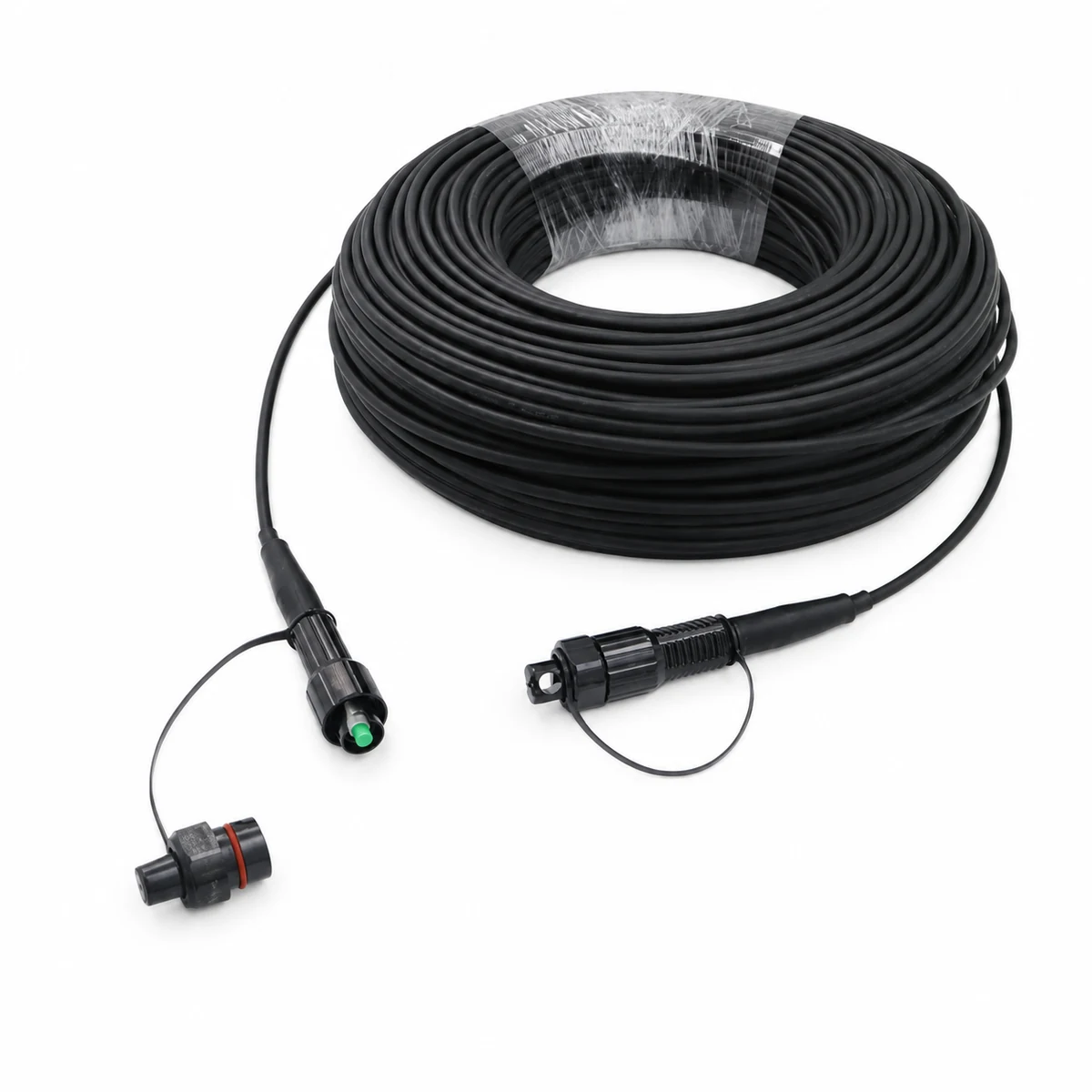

MINI SC Preconnected 5.0mm Drop Cable Patch Cord

IP68 MINI SC preconnected 5.0mm G.657A2 round drop cable for fast plug-and-play FTTx and FTTA deployment. UV-resistant outdoor construction, low-loss APC connection and customizable lengths support efficient projects for telecom operators, ISPs and contractors.

MINI SC Preconnected 5.0mm Drop Cable Patch Cord - Image 2

MINI SC Preconnected 5.0mm Drop Cable Patch Cord - Image 3

Description

NetLast 5.0 mm G.657A2 round drop cable is factory pre-terminated with a compact MINI SC/APC waterproof connector for outdoor FTTx and FTTA distribution. Its IP68 protection and plug-and-play structure reduce field splicing, installation time and connector handling on site.

Key Features

IP68 waterproof and dustproof MINI SC/APC connector
G.657A2 bend-insensitive single-mode fiber
UV-, temperature- and corrosion-resistant outdoor connector housing
Low-loss APC optical connection with tethered dust cap
Factory-terminated, tested and supplied in project-specific lengths
Suitable for fast plug-and-play outdoor access deployment

Connector Specifications

Item	Specification
Standards	GR-3120, GR-3152, IEC 61753-1, IEC 61754-4
Connector	MINI SC/APC waterproof connector
Insertion Loss	Typical ≤0.15 dB; maximum ≤0.5 dB
Return Loss	≥65 dB
Repeatability	≤0.1 dB
Interchangeability	≤0.2 dB
Dust Cap Pull Force	100 N
Protection Rating	IP68
Operating Temperature	-40°C to +75°C
Storage Temperature	-40°C to +75°C

Cable Structure

Cable Specifications

Item	Specification
Fiber Type	G.657A2 single-mode
Fiber Color	Natural
Inner Sheath Thickness	0.4 mm
Outer Sheath Thickness	1.0 mm
Strength Member	Aramid yarn, 10 + 4 dtex
Inner Diameter	2.0 ± 0.1 mm
Cable Diameter	5.2 ± 0.2 mm
Cable Weight	Approx. 25 kg/km

Mechanical Performance

Item	Specification
Short-Term Tensile Load	1200 N
Fiber Strain Under Tensile Load	≤0.6%
Short-Term Crush Resistance	500 N
Static Bend Radius	10D
Dynamic Bend Radius	20D
Installation Temperature	-10°C to +40°C
Operating Temperature	-40°C to +60°C

Applications

Outdoor FTTx and FTTA subscriber access
Remote wireless base stations
Compatible MINI SC distribution terminals and closures
Aerial, duct, wall-mounted and pole-mounted access projects

Lengths and Customization

Standard lengths include 50 m, 70 m, 80 m, 100 m and 120 m. Other lengths are available for project requirements. Send NetLast your required length, connector interface, deployment method and order quantity for a tailored quotation.
