FTTH Fiber Optic Termination Tool Kit with Power Meter and VFL – NL-TKB02
The NetLast NL-TKB02 FTTH fiber optic tool kit combines the instruments and preparation tools needed for fast connector termination and basic link verification. The portable kit includes an optical power meter, 1 mW visual fault locator, fiber cleaver, drop-cable and coating strippers, cleaning supplies and organized carrying cases.
Description
FTTH Fiber Optic Tool Kit for Field Termination
The NetLast NL-TKB02 is a portable 13-piece configuration for technicians who terminate fast connectors, prepare FTTH drop cables and perform basic optical link checks. It brings fiber preparation, cleaning, visual fault location and power measurement into one organized carrying kit for residential and commercial access-network work.
Key Features
- Combines fiber preparation and optical testing tools in one field-ready kit.
- Optical power meter covers a -70 to +10 dBm measurement range.
- 1 mW, 650 nm visual fault locator supports short-distance continuity and visible-fault checks.

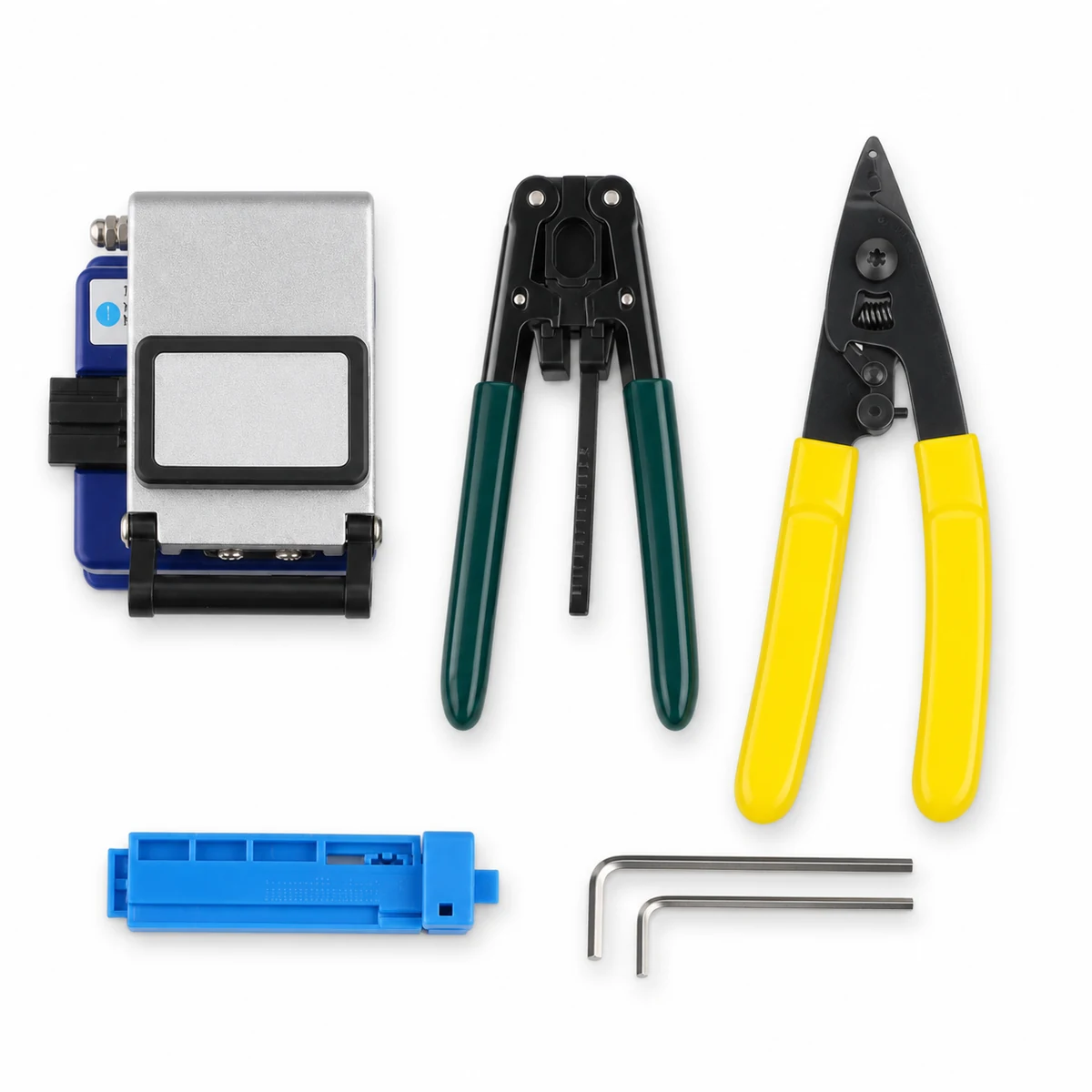

- Fiber cleaver and two stripping tools support drop-cable preparation and fast connector termination.
- Cleaning bottle and dust-free wipes help reduce contamination before connector assembly and testing.

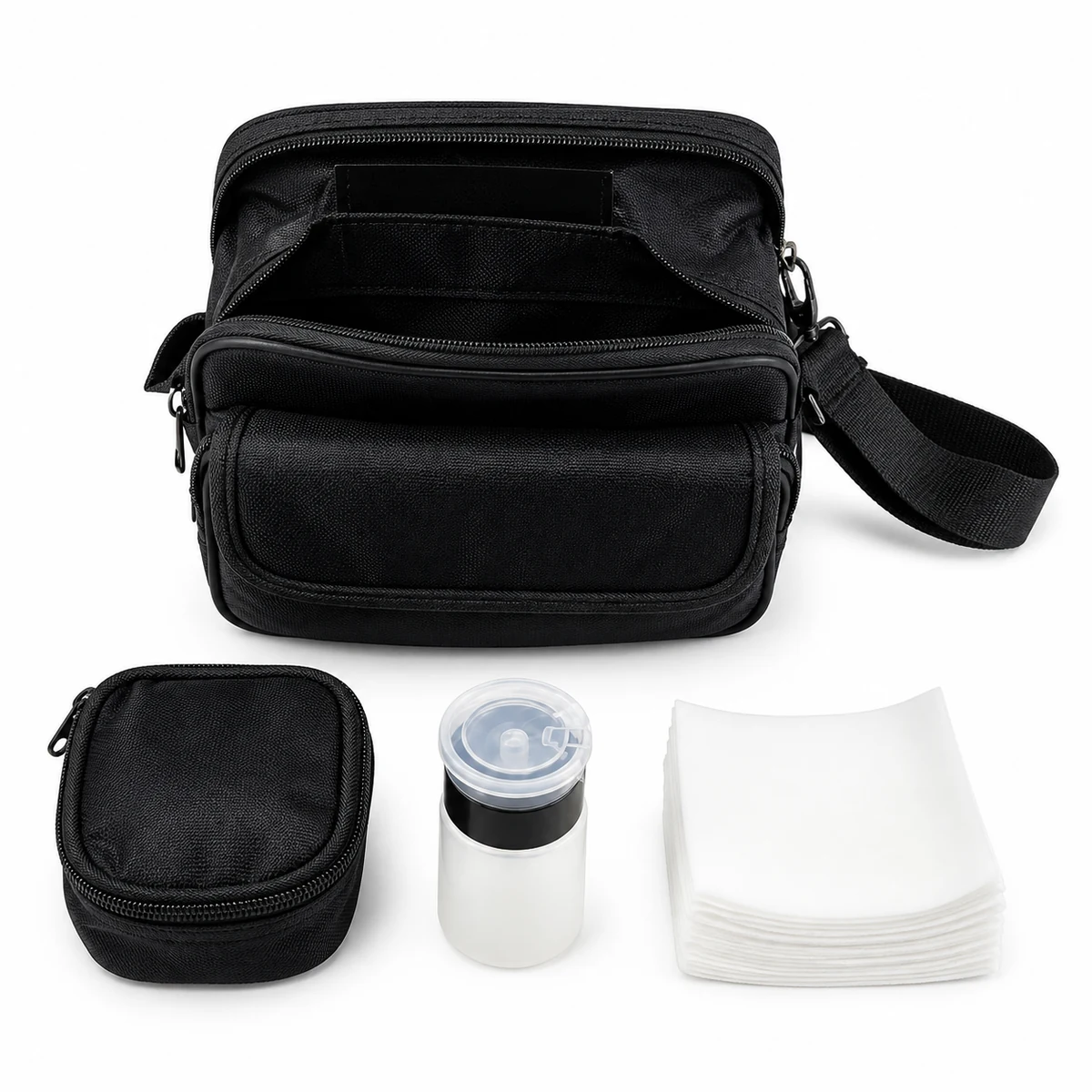

- Large shoulder bag and protective pouches keep instruments organized during site work.
13-Piece Kit Configuration
| Item | Quantity |
|---|---|
| Optical power meter | 1 pc |
| 1 mW visual fault locator | 1 pc |
| Fiber cleaver | 1 pc |
| FTTH drop cable stripper | 1 pc |
| Fiber coating stripper | 1 pc |
| Empty alcohol bottle | 1 pc |
| Dust-free cleaning wipes | 1 pack |
| Shoulder carrying bag | 1 pc |
| Cleaver pouch | 1 pc |
| VFL protective pouch | 1 pc |
| Fiber length guide | 1 pc |
| Hex key set | 1 set |
| Connector adapter/accessory set | 1 set |
Optical Power Meter Specifications
| Detector | InGaAs |
|---|---|
| Measurement range | -70 to +10 dBm |
| Wavelength range | 800–1700 nm |
| Calibrated wavelengths | 850, 980, 1300, 1310, 1490 and 1550 nm |
| Measurement uncertainty | ±0.2 dB (5%) |
| Linear resolution | 0.1% |
| Logarithmic resolution | 0.01 dBm |
| Optical interface | FC / universal 2.5 mm adapter |
| Operating temperature | -10°C to +60°C |
| Storage temperature | -25°C to +70°C |
| Relative humidity | 0–95%, non-condensing |
Visual Fault Locator Specifications
| Output power | 1 mW (0 dBm) |
|---|---|
| Test range | 3–5 km |
| Wavelength | 650 nm visible red light |
| Optical interface | FC / universal 2.5 mm adapter |
Recommended Field Workflow
- Strip the drop-cable jacket and fiber coating with the appropriate stripping tool.
- Clean the exposed fiber using approved alcohol and a dust-free wipe.
- Cleave the fiber to prepare a flat end face for the fast connector.
- Assemble the fast connector according to its installation instructions.
- Use the VFL for continuity checks and visible fault identification.
- Measure received optical power and compare the result with the project loss budget.
Applications
- FTTH and FTTx subscriber drop installation
- Fast connector field termination
- Optical continuity checks and visible fault location
- Basic received-power verification
- Telecom contractor maintenance and training
Ordering Information
Tool colors, accessory combinations, adapters, packing and labeling can be configured for project or distributor requirements. Confirm the required power-meter range, VFL output and final packing list before ordering.
