Fiber Optic PLC Splitter 1×8 SC APC Mini Splitter
NetLast Fiber Optic PLC Splitter 1×8 SC APC Mini Splitter is a compact passive optical splitter for FTTH, PON, CATV and optical signal distribution systems. It supports 1260–1650nm operating wavelength and stable optical performance for access network deployment.
Description
Fiber Optic PLC Splitter 1×8 SC APC Mini Splitter
NetLast Fiber Optic PLC Splitter 1×8 SC APC Mini Splitter is a passive optical branching device used to distribute one input optical signal into eight output channels. PLC splitter, also known as Planar Lightwave Circuit splitter, is one of the key passive components in FTTH, PON, CATV and other optical splitting systems.
This 1×8 mini PLC splitter is designed for compact installation and stable signal distribution in fiber optic access networks. It can be supplied with SC/APC connectors and G.657A fiber or specified fiber according to project requirements.
Key Features
- 1×8 fiber optic PLC splitter for optical signal distribution.
- SC/APC connector configuration for low-reflection fiber links.
- Compact mini splitter design for FTTH and PON deployment.
- Low insertion loss and low polarization dependent loss.
- Good spectral uniformity across output channels.
- Wide operating wavelength range: 1260nm to 1650nm.
- Wide operating temperature range: -40°C to +85°C.
Product Specifications
| Item | Specification |
|---|---|
| Product name | Fiber Optic PLC Splitter 1×8 SC APC Mini Splitter |
| Splitter type | 1×8 |
| Connector | SC/APC |
| Optical fiber | G.657A or specified |
| Operating wavelength | 1260nm to 1650nm |
| Operating temperature | -40°C to +85°C |
| Storage temperature | -40°C to +85°C |
| Applications | FTTH, PON, CATV and optical splitting systems |
Optical Performance Reference
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Insertion loss (dB), P/S level | 3.8/4.0 | 7.0/7.2 | 10.3/10.5 | 13.5/13.7 | 16.5/16.8 | 20.1/20.5 |
| Loss uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return loss (dB), P/S level | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization related loss (dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength related loss (dB) | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
| Temperature stability, -40°C to +85°C (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Applications
The 1×8 SC/APC mini PLC splitter is used in optical networks where one input fiber needs to be split into multiple output fibers with stable optical performance. Common applications include:
- FTTH access network distribution.
- PON network optical splitting points.
- CATV optical signal distribution.
- Fiber optic distribution boxes and terminal boxes.
- Optical network construction for ISPs and contractors.

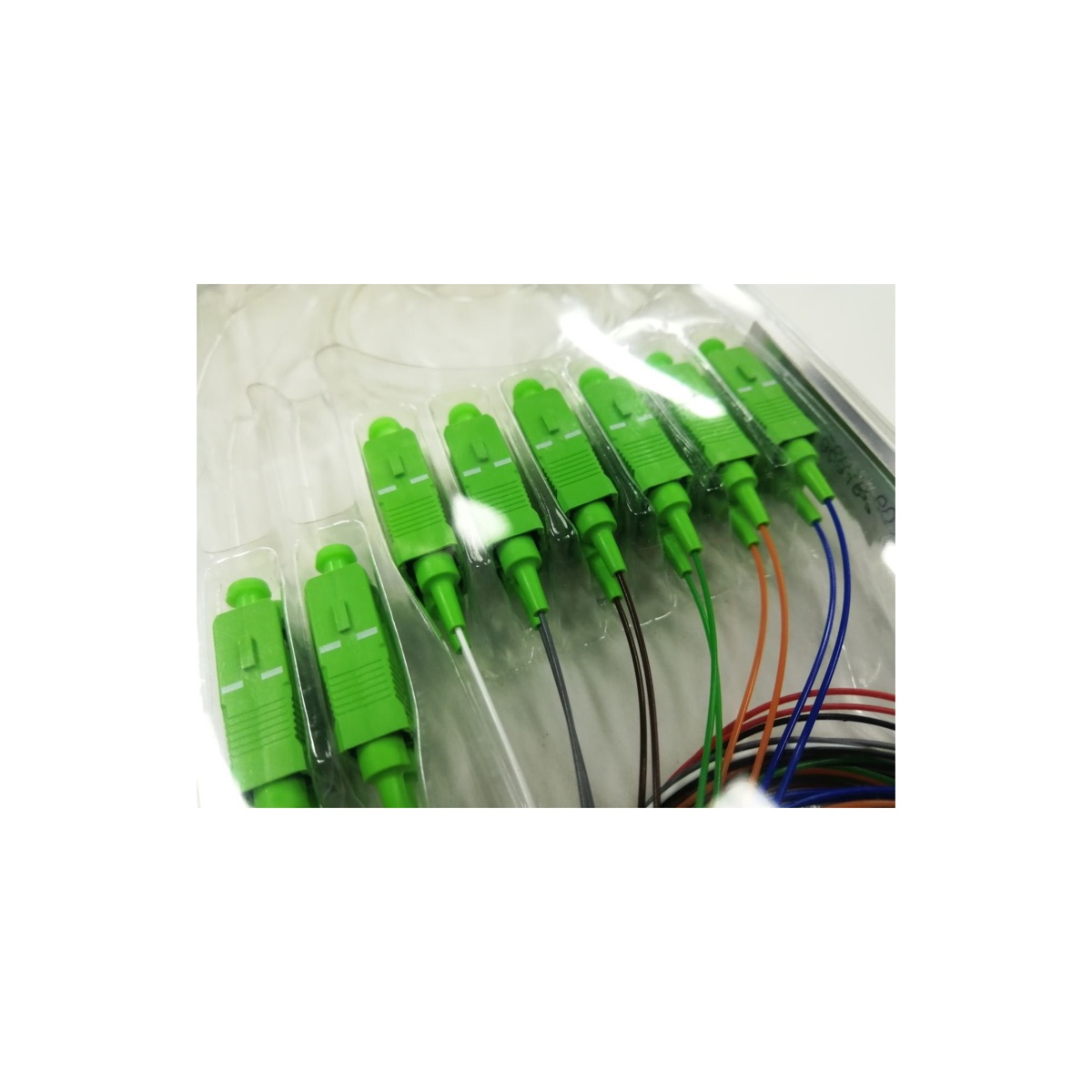

Packing Options
- Plastic box with master carton.
- Poly zipper bag with master carton.
Customization and Ordering
NetLast can support project-based PLC splitter requirements including connector type, fiber type, splitter ratio and packing method. For quotation, please share the splitter ratio, connector type, fiber length, quantity, packing requirement and destination so NetLast can confirm the suitable configuration for your project.
