16 Core Double Lock Fiber Optic Distribution Box – NL-DL16C

The NetLast NL-DL16C is a 16 core double lock fiber optic distribution box in black color, designed for distribution and terminal connection in optical fiber systems. It is especially suitable for network terminal distribution where optical cables, patch cords or pigtails are connected.

This outdoor fiber distribution box supports wall mounting and pole mounting. It provides 2 input ports for Φ8 mm cables and 16 FTTH drop cable output ports for 3 × 2 mm drop cable, with drop cable fixing parts for organized field installation.

Key Features

• 16-port terminal distribution: can load 16 pcs SC simplex adapters.
• Splicing and splitting inside: supports up to 24 fibers splicing and can accommodate 2 pcs 1×8 mini PLC splitters or 1 pc 1×16 mini PLC splitter.
• Outdoor IP65 protection: rainfall resistant design for outdoor use.
• Double lock structure: suitable for secure terminal distribution in FTTH access networks.
• Installation flexibility: wall mounting and pole mounting applications are optional.
• Practical cable routing: 2 input ports for Φ8 mm cable, cable uncut application support, and 16 FTTH drop cable ports for 3 × 2 mm drop cable.
• Durable housing: high quality PC+ABS plastic with UV resistance; black color.

Technical Specifications

Applications

• FTTH access networks
• Telecommunication networks
• CATV networks
• Data communications networks
• Local area networks

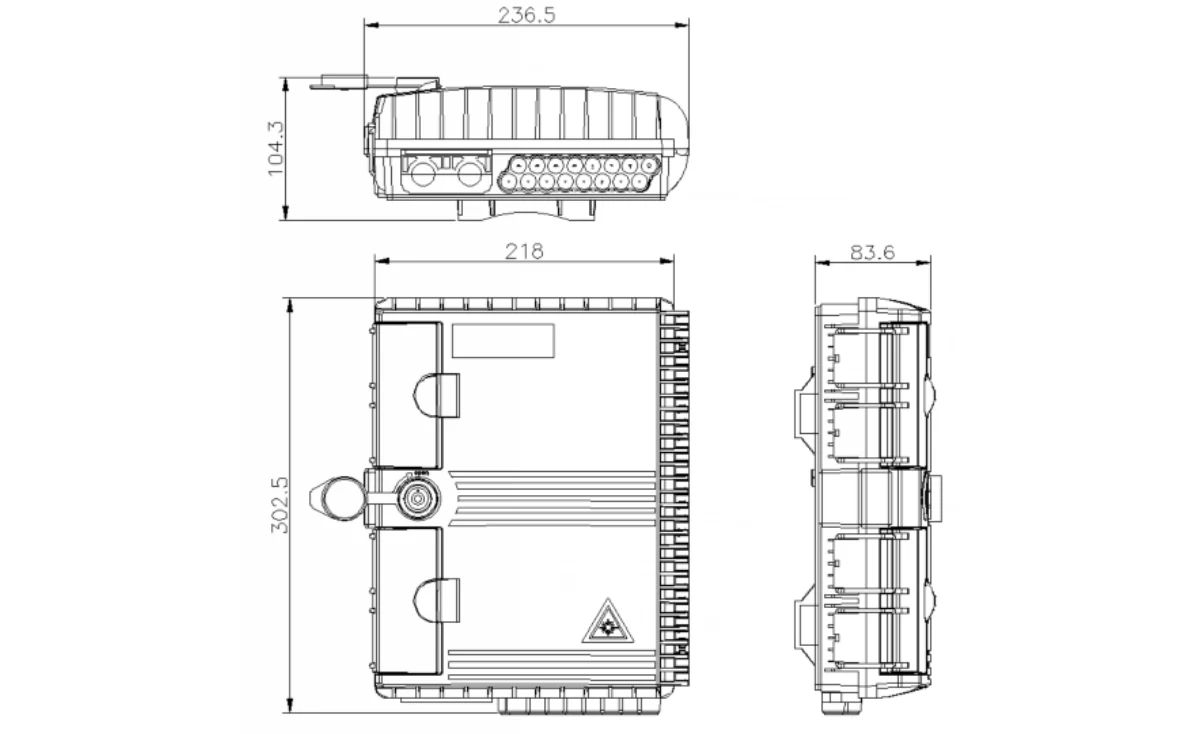

Dimension Drawing

Contact NetLast to confirm adapter type, PLC splitter configuration, installation accessories and delivery schedule for your FTTH fiber optic distribution box project.
